Quick Details

  • Condition: New
  • Mixer Type: dispersing disc
  • Product Type: Paint
  • Application: Liquid-Liquid, Liquid-Solid
  • Additional Capabilities: dispersing, mixing, dissolving
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: SIEHE
  • Model Number: SFSF
  • Max. Loading Capacity: 10~10000L
  • Voltage: 380V/50HZ(can be customized)
  • Power(W): 1.5Kw~132Kw
  • Dimension(L*W*H): accordingly
  • Certification: CE, ISO
  • Warranty: 12 months warranty, life time maintainance
  • After-sales Service Provided: Engineers available to service machinery overseas
  • High Speed Disperser: SFSF Series High-speed Disperser (Mounted on Kettle )

Packaging & Delivery

Packaging Details Wooden case with steel frame
Delivery Time 30 working days after receiving deposit/ payment

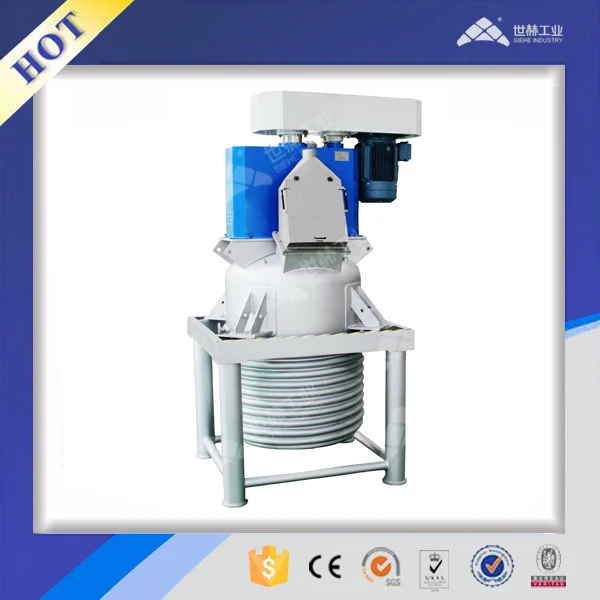

SFSF Series High-speed Disperser (Mounted on Kettle )


Working Principle:
High-speed Disperser is to dissolve, disperse and mix materials with different viscosity. Through the very high peripheral tip speed of the toothed disc, the strong shearing, crashing and friction forces generated between the materials and toothed disc disperse, dissolve and mix the materials efficiently. The large stress forces break down the agglomerates into the liquid or paste suspension.
Main Features:
1.This kind of High-speed Disperser is mainly used for various fixed containers. It inserts into the kettle from the top or from bottom. Generally, it adopts dual end mechanical seal with self-lubing system. Stable performance, safe and reliable. Frequent maintenance is not required.
2.Little air absorption during mixing and dispersing process.
3.It disperses and dissolves materials to smaller particle size efficiently.
4.No dead corner during mixing. Easy to clean, wide capacity range, various speed control, stable operation, low noise and long-time continuous operation.
Technical Parameter:

Model

Capacity
(L)

Power
(kw)

Speed
(rpm)

Disc .Dia
(mm)

SFSF-1.5

≤50

1.5

0-1450

150

SFSF-4

≤200

4

0-1450

200

SFSF-7.5

≤400

7.5

0-1450

230

SFSF-11

≤500

11

0-1450

250

SFSF-15

≤700

15

0-1450

280

SFSF-18.5

≤800

18.5

0-1450

300

SFSF-22

≤1000

22

0-1450

350

SFSF-30

≤1500

30

0-1450

400

SFSF-37

≤2000

37

0-1450

400

SFSF-45

≤2500

45

0-1450

450

SFSF-55

≤3000

55

0-1450

500

SFSF-75

≤4000

75

0-950

550

SFSF-90

≤6000

90

0-950

600

SFSF-110

≤8000

110

0-950

700

SFSF-132

≤10000

132

0-950

800

Remarks:

*The above listed Max. processing capacity is calculated as per water as medium. The model  selection should depend on the comprehensive factors such as materials viscosity, specific gravity etc.

*If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc, correct data is required for correct model selection.

*If any changes of the data and picture,no further notice is provided.Correct parameter is based on the real object provided.

*The sheet is not including all the products.To know more information,Pls feel free to contact our sales engineers.
