Quick Details

  • Condition: New
  • Mixer Type: Screw
  • Product Type: Food, Dyestuff,Pharmacy, Coating
  • Application: Powder
  • Additional Capabilities: Milling
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: SIEHE
  • Model Number: SZX
  • Max. Loading Capacity: 20000
  • Voltage: 380V,50/60Hz, can be customized
  • Certification: ISO,SGS
  • Warranty: 1 year warranty, lifelong maintanence
  • After-sales Service Provided: Overseas service center available

Packaging & Delivery

Packaging Details wooden case with steel frame
Delivery Time 50 days after receiving deposit

Ceramic Powder Nauta Mixer



1. Reference Parameter



Model

Motor(kw)

Speed(rpm)

Quantity (kg)

Shape Size (mm)

Weight (kg)

SZX-0.1

1.5

2/108

30-60

φ750*1580

250

SZX-0.5

3

2/108

150-300

Φ1150*2320

650

SZX-1

5.5

2/57

300-600

Φ1480*2850

1200

SZX-2

5.5

2/57

600-1200

Φ1820*3510

1500

SZX-3

7.5

1.8/57

900-1800

Φ2050*3800

2300

SZX-4

11

1.8/57

1200-2400

Φ2250*4480

2500

SZX-5

15

1.8/57

1500-3000

Φ2350*4720

2800

SZX-6

15

1.8/57

1800-3600

Φ2560*4980

3000

SZX-8

18.5

1.8/57

2400-4800

Φ2780*5360

4500

SZX-10

18.5

1.8/57

3000-6000

Φ3020*5810

5500

SZX-15

22

1.8/57

4500-9000

Φ3460*6510

6800

SZX-20

37

1.8/57

6000-12000

Φ3810*7420

7800

SZX-25

45

1.8/57

7500-15000

Φ4090*7800

9800

SZX-30

55

1.8/57

9000-18000

Φ4350*8200

11800



2. Intro
Conical Double Screws Mixer is a brand-new mixer. It is characterized in high degree of homogeneity, low energy consumption, little residue, little destruction to frangible material.



3.Application

It is suitable for mixing a wide range of materials such as powder-powder, powder-liquid, especially for fine powder, fiber or chip-shaped materials. It is widely usedin industries such as pharmaceutical, food, battery materials, dyestuff & pigment, chemical industry, rare earth, putty and sand paste etc..



4. Main Features

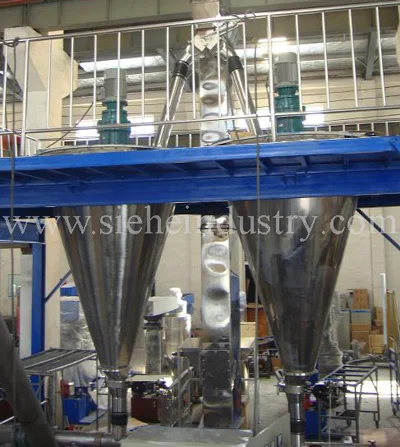

  • Conical Double Screws Mixer consists of three parts: Transmission part, Agitator and reverse cone cylinder.
  • Two kinds of Transmission part: A type (Driven by Cycloildal needle reducer) and B type (Driven by Worm-gear reducer).
  • The agitator is two asymmetrically helixes. They rotate around their own axes and at the same time revolve around the cones center axis. The materials will be elevated repeatedly through the rotation and revolution of the helix and form shearing, convection and diffusing in the cone cylinder to realize perfect mixing effect.
  • The external side of the cylinder can designed with jacket for cooling or heating.
  • The materials discharging at the cylinder bottom can be pneumatic, electric or manual.

Remarks:

*The above listed Max. processing capacity is calculated as per powder with specific gravity 1 as medium. The model selection should depend on the comprehensive factors such as materials viscosity, specific gravity etc.
 *If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc, correct data is required for correct model selection.

*The above data and picture is subject to change without notice. The accurate parameter should be subject to the object.

*Not all products are listed. For more, please contact with our sales engineer.



Should you have any questions, feel free to contact with SIEHE Company,

our salesmen and techinican will reply you as soon as possible.

Tel+86 21 52913185, 52913186

Fax+86 21 52912822
